Detailed Product Description
Crane& Hoist Steel Wire Cable Trolley Festoon System , Galvanized Steel Conductor Rails With Brass Dowel, Rope and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.
Steel wire trolley applied to light load mobile power supply device, easy to install, low cost.

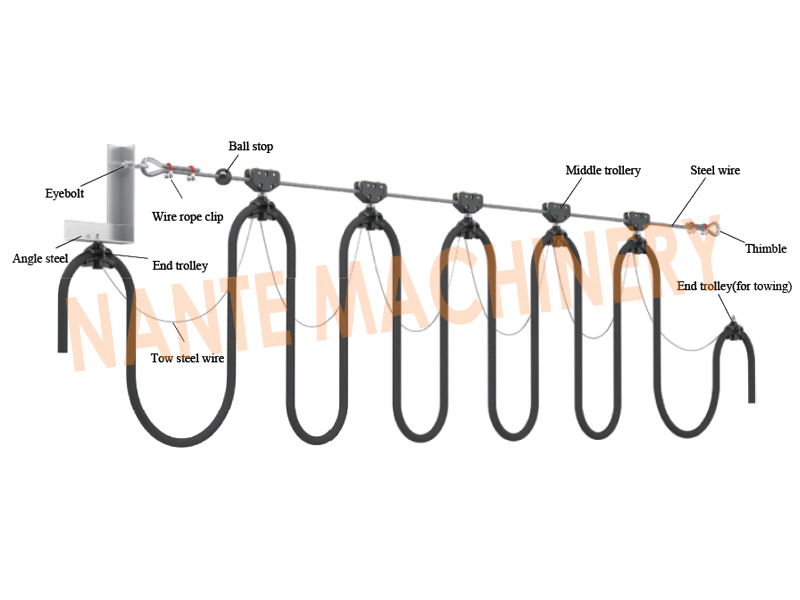

Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method. This festoon system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.
NANTE supply full line of beam trolley,
- For Straight or Curver Beam
- For IPN Beam or H Beam or I-Beam
- For Normal Working Condition or Corrosivity
- For Light or Heavy Duty Working
- For One or Two or Three Foor Cables
Specifications
1. Crane& Hoist Steel Wire Cable Trolley Festoon System
2. Delivering power& control to mobile equipment
3. Safe, convenient
Application
Steel Wire systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc, suitable for small cable loads.
Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation
Technical Parameters

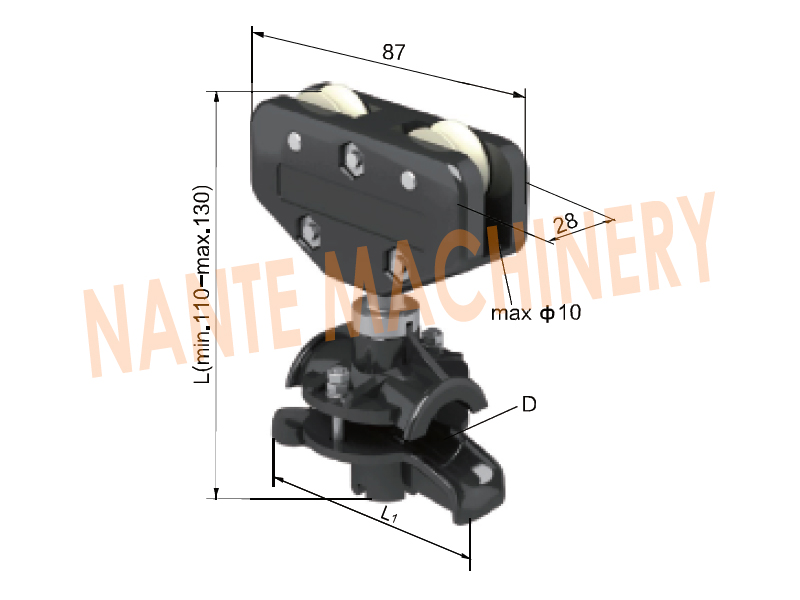

| Type | Max. cable load | Dia. Of Cable(mm) | Weight(kg) |
| WRMT-30 | Max.8kg/trolley | D=φ30mm | 0.17 |
| WRMT-40 | Max.10kg/trolley | D=φ40mm | 0.18 |
| WRET-30 | Max.8kg/trolley | D=φ30mm | 0.06 |
| WRET-40 | Max.10kg/trolley | D=φ40mm | 0.07 |
| Wheels | Plastic |
| Max Travel Speed | 120m/min |
| Material | ABS |
| Temperature | -30℃~+80℃ |
Product Tags:
|
|
Firm And Flexible Wire Steel Festoon Accessories For Round Cable Middle / End Trolley Images
|
