Application
Angle systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. Angle steel are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.
Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation
Detailed Product Description
Angle Steel Trolley festoon system, Galvanized Steel Angle and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.
Angle steel trolley applied to light mobile power supply device, with a quick isntallation, low cost, long life, stable operation and other characteristics.
The angle steel system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.
Technical Parameters

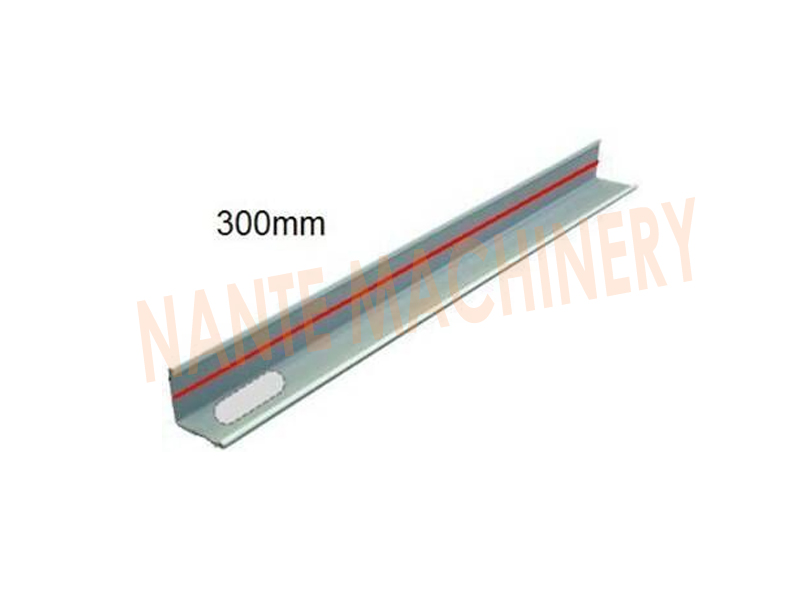

Angle Steel

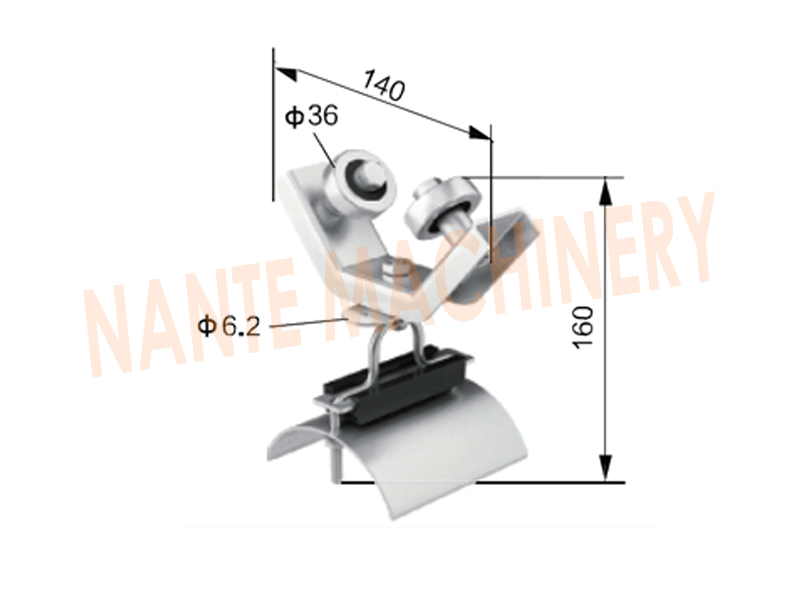

Trolleys for flat cable
| Type | ASF-40(flat cable) |
| Wheels | Ball bearings, hardened, galvanized |
| Temperature resistance Lub. grease of wheels: -30°C-- +100°C |
| Travelling speed: ca. 160 m/min. |
| Material | Carrier body: steel, galvanized |
| Support saddle: steel, galvanized |
| Bumper: Neoprene |
| Dowel:steel, galvanized |
| Hardware: galvanized |
| Max. cable load | max.30KG |
| Dim. of Cable (mm) | max.75 Wx32δ |
| Weight(kg) | 0.67 |

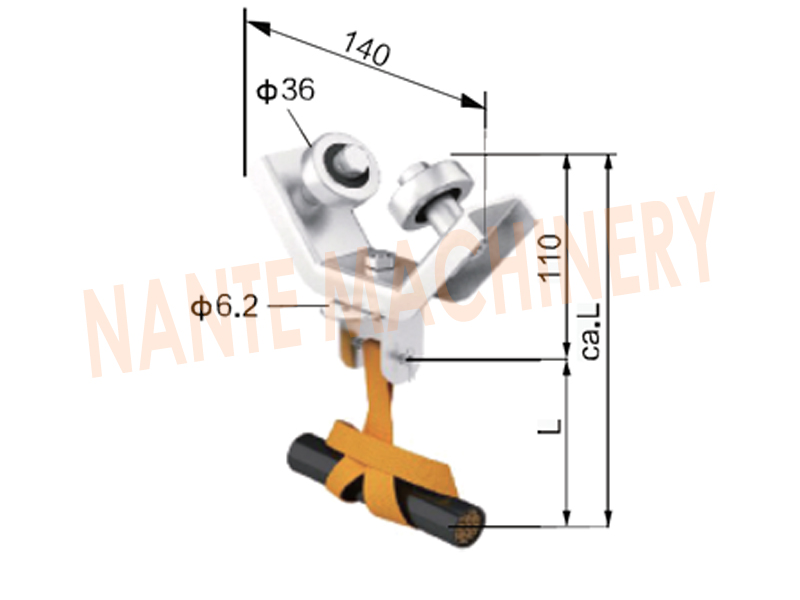

Trolleys for round cable
| Type | ASR-40(round cable) |
| Wheels | Ball bearings, hardened, galvanized |
| Temperature resistance Lub. grease of wheels: -30°C-- +100°C |
| Travelling speed: ca. 160 m/min. |
| Material | Carrier body: steel, galvanized |
| Clamp : steel, galvanized |
| Sling: Nylon |
| Dowel: Brass or steel, galvanized |
| Max. cable load | 30KG/max. 30 KG per carrier |
| Dim. of Cable (mm) | max.D=dia.50mm/D=dia.80mm/D=dia.160mm |
| Weight(kg) | 0.48 |
