Sliding Line Busbar Overhead Crane Spare Parts Power Pipe Enclosed Conductor System

Name: Sliding Line Busbar Overhead Crane Spare Parts Power Pipe Enclosed Conductor System
Brand: NANTE
Price: 8.89 USD

Sliding Line Busbar Overhead Crane Spare Parts Power Pipe Enclosed Conductor System Manufactures

Brand Name : NANTE

Model Number : NANTE-03

Certification : ISO

Place of Origin : CHINA

MOQ : 50M

Price : 8.89-13USD/PC

Payment Terms : L/C, T/T

Supply Ability : 500M/DAY

Delivery Time : 7 days

Packaging Details : plywood carton

Material : copper and PVC

poles : 3 poles and 4 poles

Stand length : 4M

Application : crane

max voltage : 600V

Current range : 35A-80A-170A

Contact Now

low price sliding line busbar power pipe enclosed conductor system for overhead crane

Brief introduction/

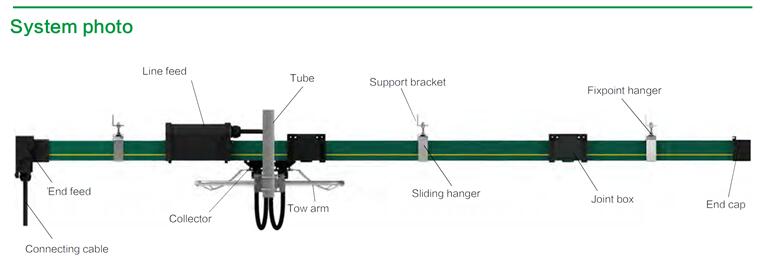

Powerail Enclosed conductor rail system is a powerail, protectedfrom contact (IP 23), For indoor and outdoor plants. They are conductor lines in a rigid greeen PVC housingwith differentcopper cross sections for rated currents of 35 - 240A

The current collectors, running in ball bearings, are guided bythe housing.

The main is transferred by springstored carbon brushes.Type HFP-P: not include Sealing strip, with factorymounted flat copper band and bolted- -operated plug connectors .

Product Description

Type	Poles	conductor cross section (mm2)	max current (A)	leakage -distance (mm)	max voltage (V)	resistance	weight(kg)	(order-NO)
HFP56-4-8/35	4	8	35	35	600	1.944	2.09	560002
HFP56-4-10/50	4	10	50	35	600	1.656	2.16	560003
HFP56-4-12/65	4	12	65	35	600	1.321	2.23	560004
HFP56-4-15/80	4	15	80	35	600	1.137	2.30	560005
HFP56-4-20/100	4	20	100	35	600	1.011	2.43	560006
HFP56-4-25/120	4	25	120	35	600	0.713	2.56	560007
HFP56-4-35/140	4	35	140	35	600	0.522	2.95	560008
HFP56-4-50/170	4	50	170	35	600	0.337	3.25	560009
HFP56-4-70/210	4	70	210	35	600	0.265	3.85	560010
HFP56-4-80/240	4	80	240	35	600	0.223	4.16	560011
